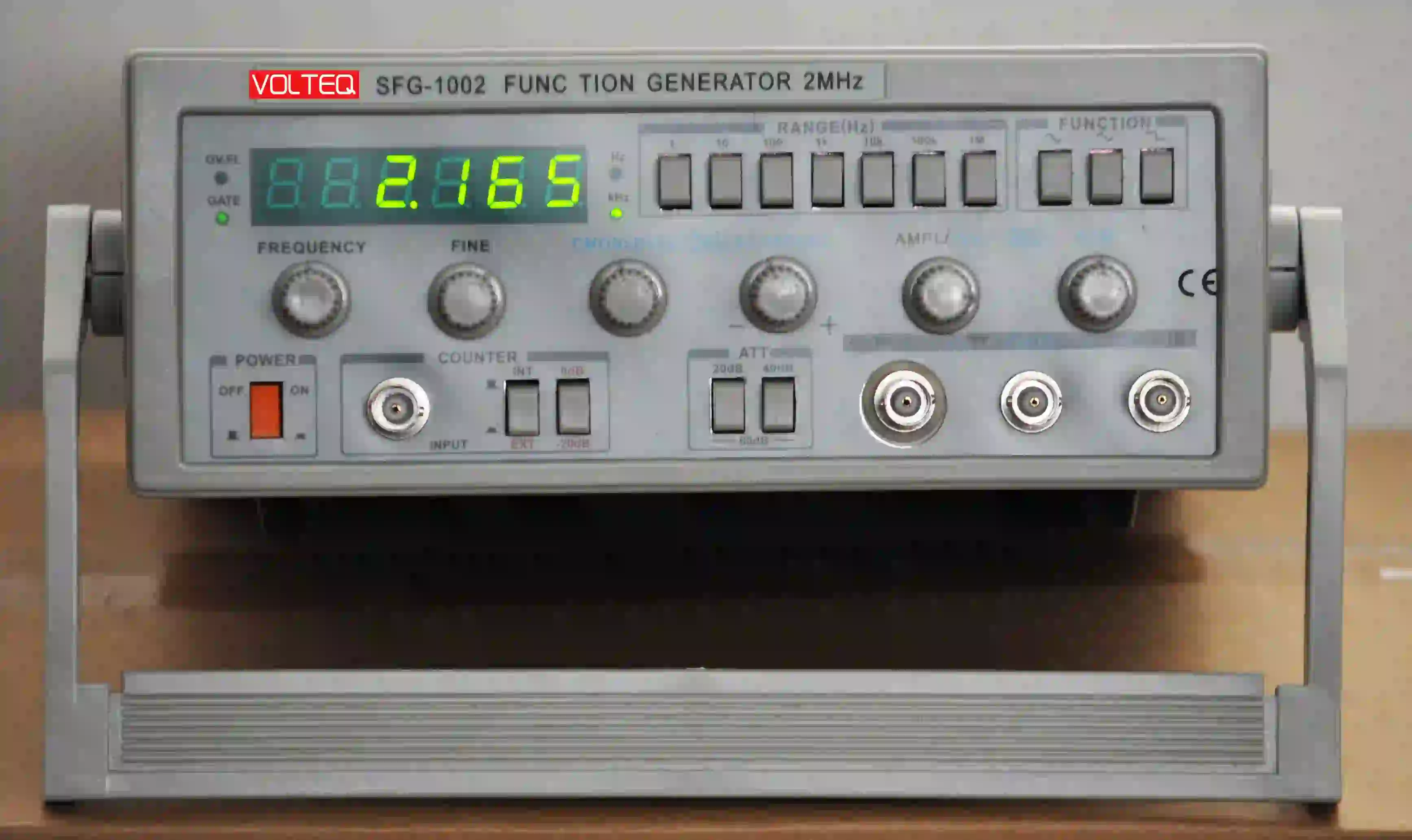

2 MHz Function Generator Frequency Counter SFG-1002

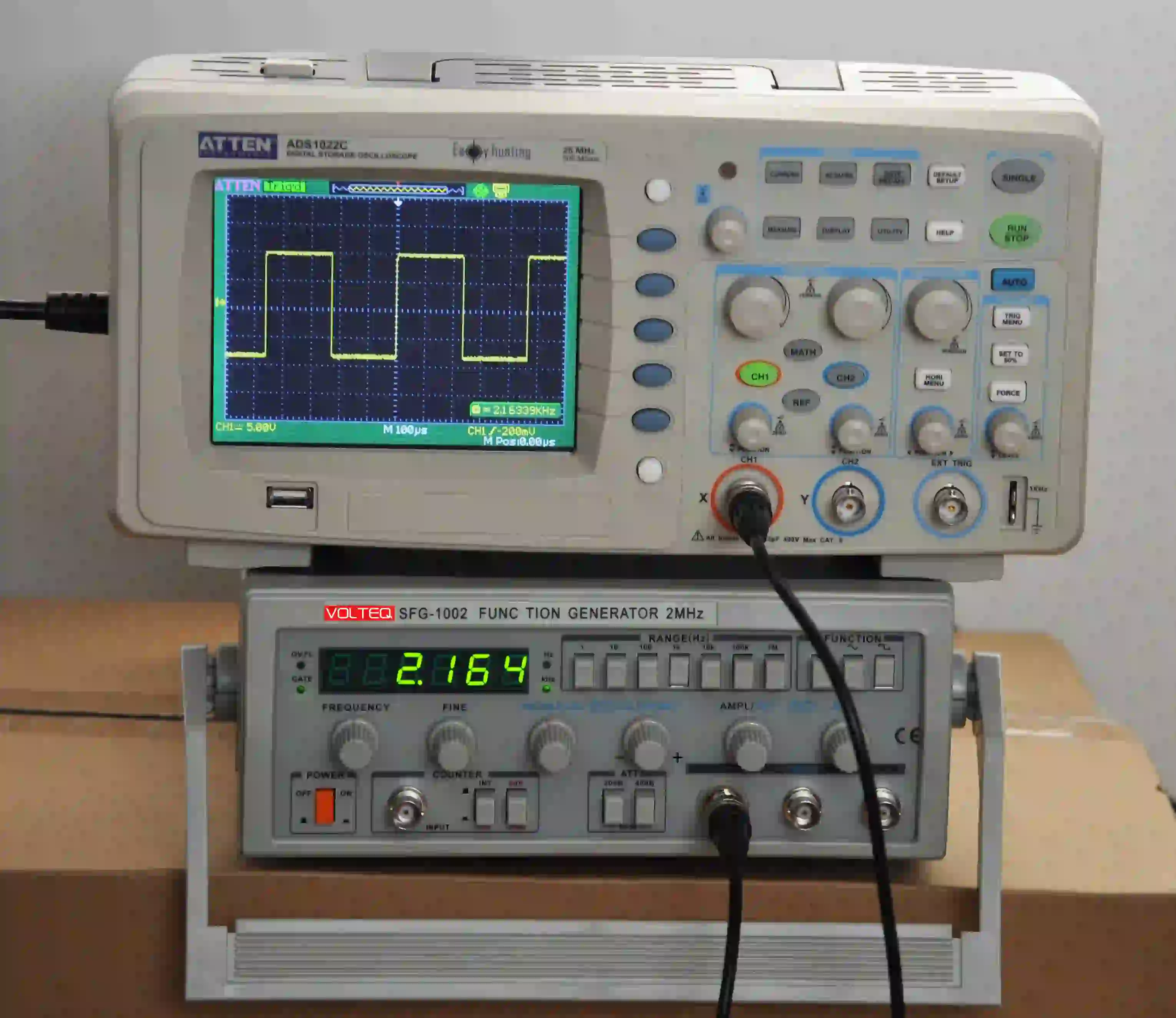

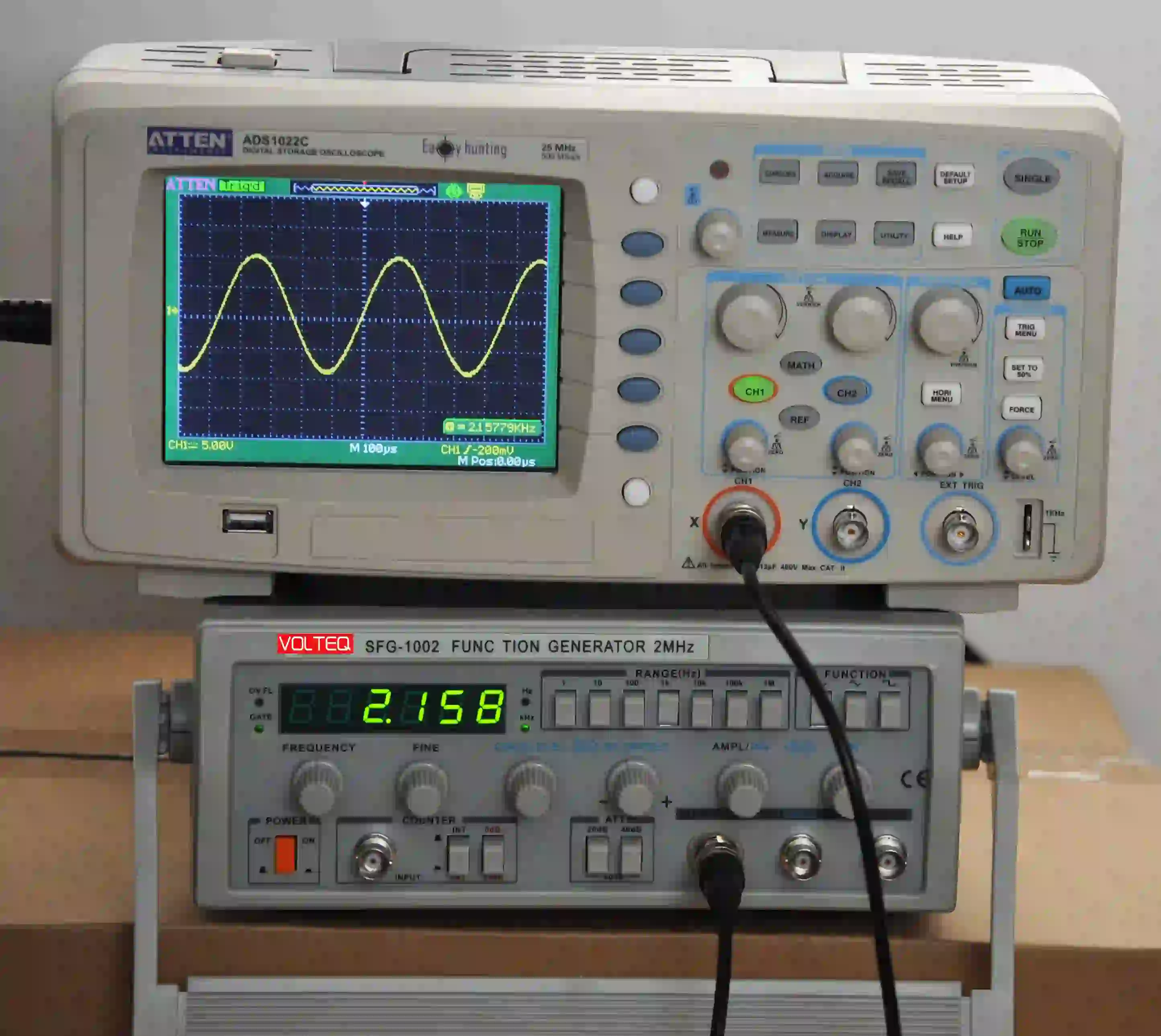

For sale is a brand new, high quality general purpose function generator / frequency counter in one package, excellent for lab technicians and professionals in electronics industry. With its 7 range selectors, SFG-1002 allows convenient and accurate adjustment of frequency, continuous adjustment of amplitude in four ranges (non attenuated, 20dB, 40 dB, and 60 dB attenuation), DC offset of +/- 10V, continuous adjustment of duty cycles from 10% to 90%, and is capable of producing high accuracy sine waves, triangular waves and square waves. Retails well over $250.

Features:

• Dual purpose: function generator and frequency counter in one
• Low distortion: <1%
• TTL/CMOS output
• VCF input

Specifications:

• Output waveforms: Sine, Square, and Triangle, TTL/CMOS
• Frequency: 0.1Hz to 2 Mhz
• Amplitude: 20 Vp-p
• Impedance: 50 Ohm
• Attenuation: 20 dB, 40 dB
• DC offset: +/- 10 V
• Duty cycle: 10%-90%
• Rising edge: <100 ns
• Measuring range: 1Hz - 20MHz
• Size: 12.2" x 3.5" x 9.1"
• Net weight: 5 lbs
• Input Voltage: 110V/220V
• Warranty: 1 year
