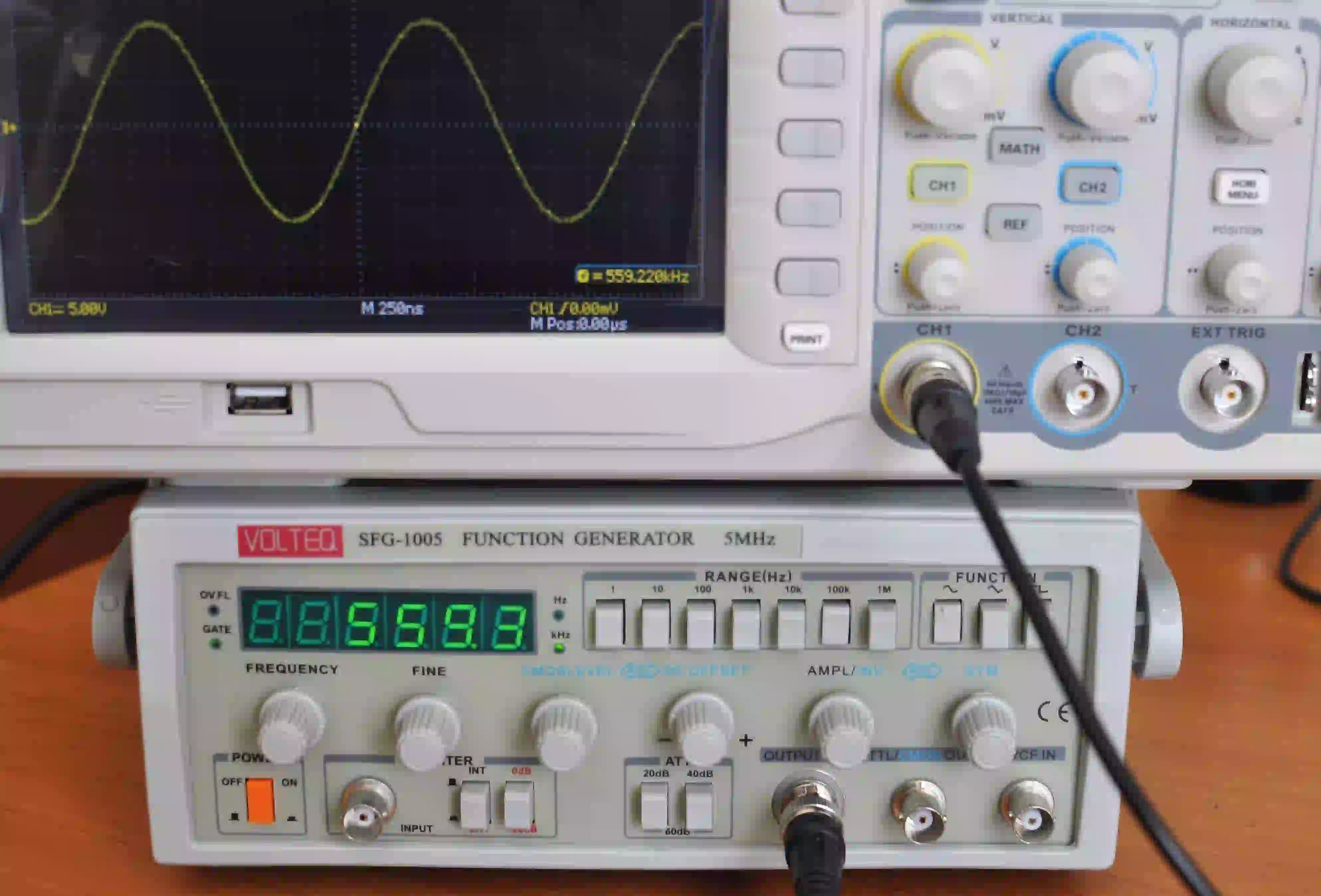

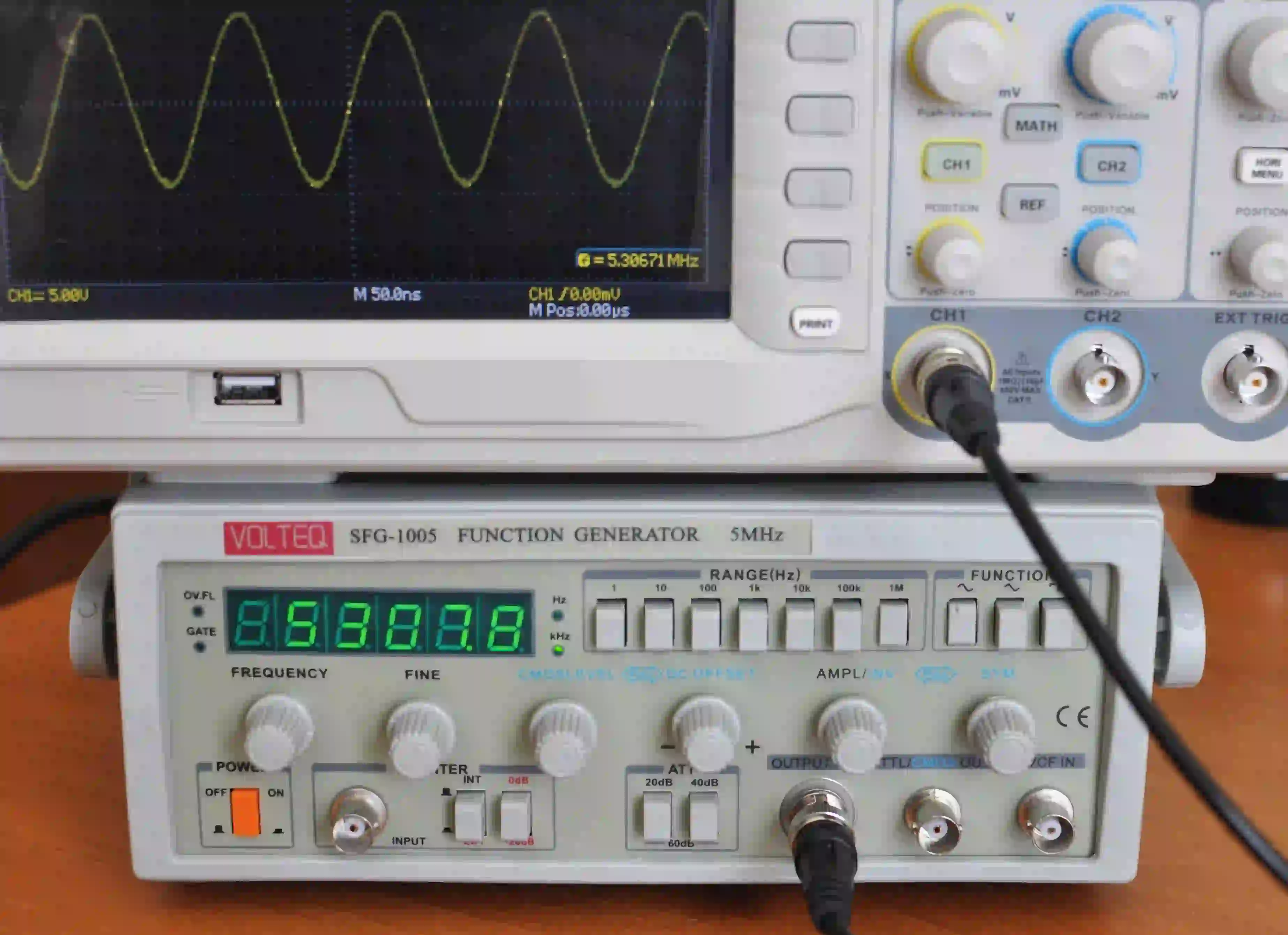

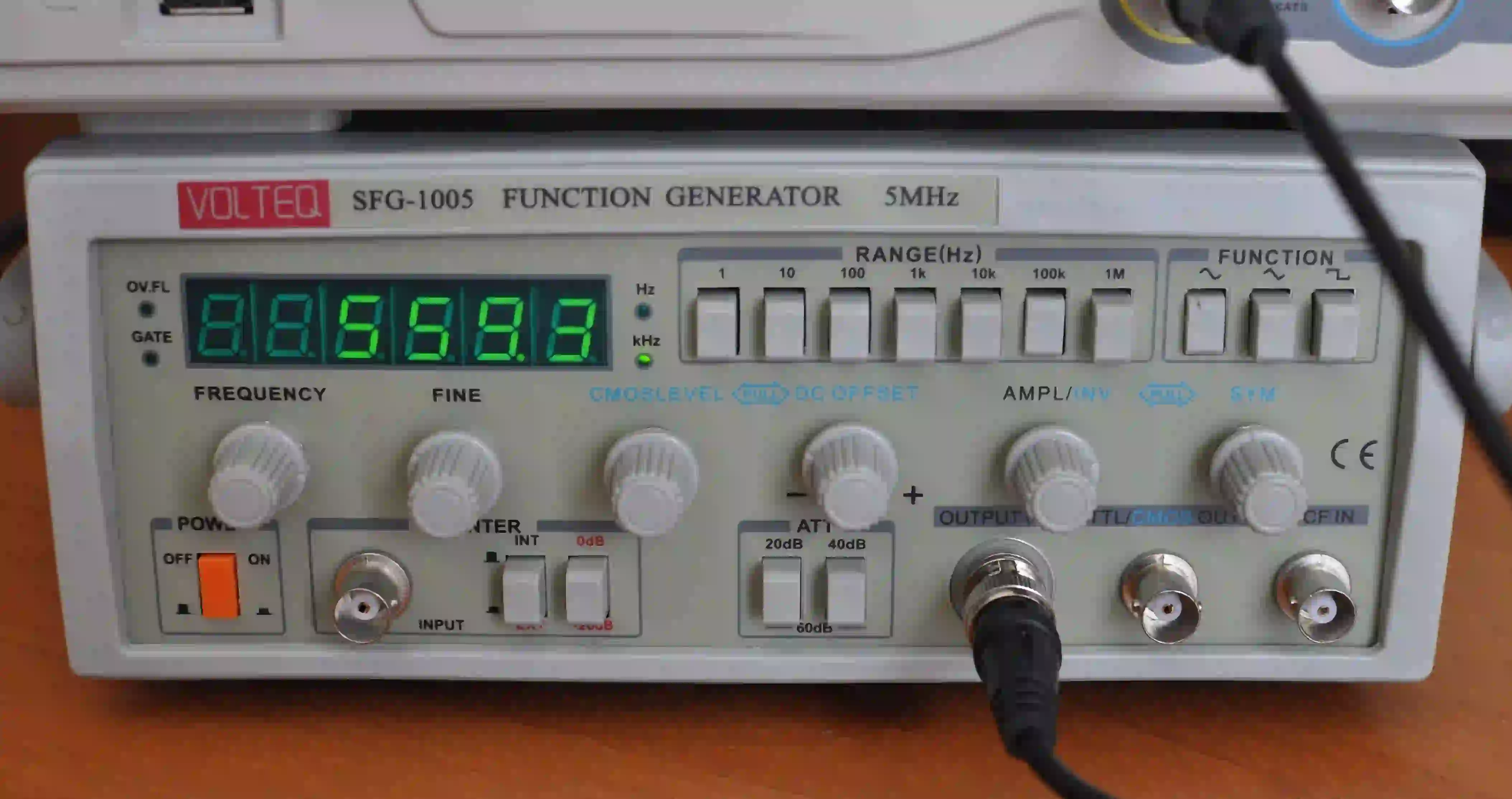

5 MHz Function Generator / Frequency Counter SFG-1005

5 MHz Function Generator / Frequency Counter SFG-1005

Tap to enlarge

$300.00$139.95

(Quantity discounts available)

Qty:


Product Information
Specification
Quantity Discounts

For sale is a brand new, high quality general purpose function generator / frequency counter in one package, excellent for lab technicians and professionals in electronics industry. With its 7 range selectors, SFG-1005 allows convenient and accurate adjustment of frequency, continuous adjustment of amplitude in four ranges (non attenuated, 20dB, 40 dB, and 60 dB attenuation), DC offset of +/- 10V, continuous adjustment of duty cycles from 10% to 90%, and is capable of producing high accuracy sine waves, triangular waves and square waves. Retails well over $280.

Features:

  • Dual purpose: function generator and frequency counter in one
  • Low distortion: <1%
  • TTL/CMOS output
  • VCF input

Specifications:

  • Output waveforms: Sine, Square, and Triangle, TTL/CMOS
  • Frequency: 0.1Hz to 5 Mhz
  • Amplitude: 20 Vp-p
  • Impedance: 50 Ohm
  • Attenuation: 20 dB, 40 dB
  • DC offset: +/- 10 V
  • Duty cycle: 10%-90%
  • Rising edge: <100 ns
  • Measuring range: 1Hz - 20MHz
  • Size: 12.2" x 3.5" x 9.1"
  • Net weight: 5 lbs
  • Input Voltage: 110V/220V
  • Warranty: 1 year



 SFG-1005
 SFG-1005
 SFG-1005
 SFG-1005
Product CodeSFG-1005
ManufacturerVOLTEQ
Stock Level16
ConditionNew
Weight13lb

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$139.95
1+$139.95
