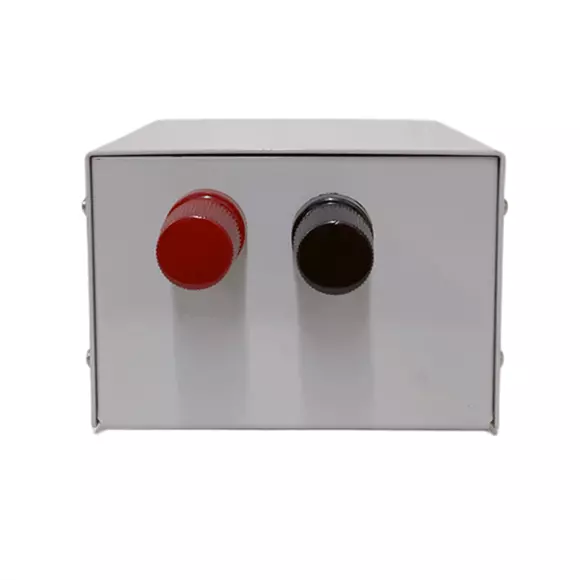

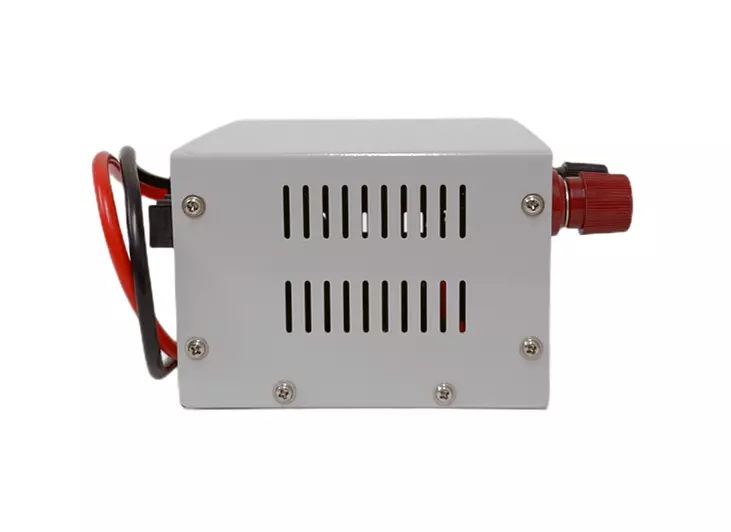

50A Volteq EP Reverse Polarity Switch Box

For sale is a reverse polarity switch box, whose input side needs to be connected to the Volteq EP models, to enable switching polarity of the  output of our programmable power supply (EP model). With control signal of 5V, the output polarity can be switched.

This mode RP30 is rated for up to 50A.

Dimension: 6.2" by 4.7" by 3.1"

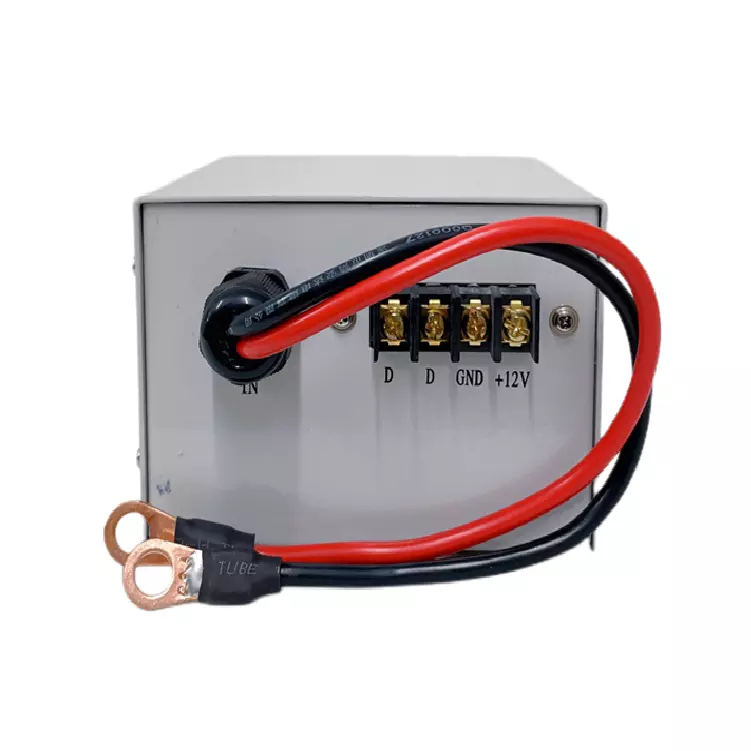

Control Input needed: 12V (for energize the relays) and 5V (for control relays).

Default state: output is reversed.

Relay response time: > 10 mS (mechanical relays are used in constructing these devices)
