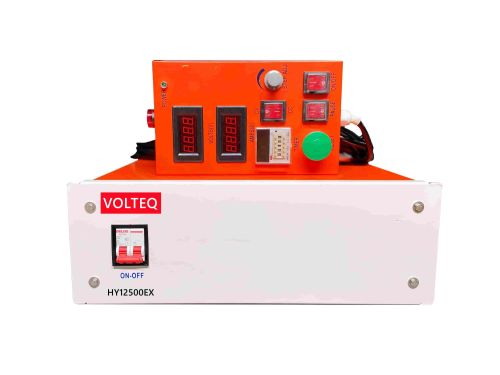

HY12500EX High Current Electroplating Rectifier 12V 500A Remote Control

HY12500EX High Current Electroplating Rectifier 12V 500A Remote Control

Tap to enlarge

12345

5.0 average, based on 1 reviews

$4,500.00$2,495.00


Product Information
Specification

For sale is a newly designed VOLTEQ HY12500EX. VOLTEQ HY12500EX is a high current electroplating rectifier with built-in over-voltage and over-current protection, ideal for anodizing and plating applications in commercial metal finishing shops, as well as battery charging and DC motors. HY12500EX is one of the most powerful variable DC power supply we carry, with the maximum DC power of 6000W. This high quality plating rectifier can be continuously adjustable at 0-12V DC and 0-500A. The current requirement on the AC line is 30A at maximum output of 6000W. Retails well over $4500.

New features include remote control box with 10 meters long cabel from main power supply, filters on fans, and timer operation for easy process control.


Features & Specifications:

  • Easy control of both current and voltage outputs using a remote control box
  • Timer and alarm function allows easy control of process
  • Outputs: 0-12 V and 0-500 A
  •  Protection: over-voltage and over-current protection
  • Input voltage: 220V -240V AC single phase (No NEMA plug included)
  • Voltage Stabilization: <=0.5%
  •  Current Stabilization: <=1%
  • Load Regulation: <=0.5%
  • Ripple noise: CV <= 5%
  • LCD reading accuracy: +/-1% +/-1 digit
  • Environment: 0-40C, relative humidity < 90%; no condensation
  • Size: 17.25" Wx 21.25" L x 9" H
  • Weight: 75 lbs
  • Warranty: 1 year
Switching Power Supply HY12500EX
Switching Power Supply HY12500EX
Product CodeHY12500EX_new_design
ManufacturerVOLTEQ
Stock Level9
ConditionNew
Weight75lb
Width16″
Height23″
Depth8″

Customer Reviews

Average Rating: 5

12345
I bought a couple to replace our old platers from 20 years ago. Saved a lot of electricity for us. Well worth the price. Michael S (24 Oct 2020, 10:18)
