HY1803D Lab Grade DC Regulated Power Supply 0-20V 0-3A

HY1803D Lab Grade DC Regulated Power Supply 0-20V 0-3A

Tap to enlarge

$130.00$79.95


Product Information
Specification



HY1803D is a brand new lab grade DC regulated power supply. This highly stable, high quality DC power supply has an output continuously adjustable at 0-20V DC and 0-3A. The unit comes with 2 bright LED displays, providing accurate readout for the voltage and current values.

Features & Specifications:

  • Adjustable outputs: 0-20V and 0-3A
  • Coarse and fine controls for both current and voltage outputs
  • Protection: over-voltage and reverse-voltage
  • Input voltage: 110V/60Hz and 220V/50Hz switchable
  • Line regulation: CV <= 0.01% + 3 mV, CC <= 0.2% + 3 mA
  • Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
  • Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
  • Recovery time: <100 micro seconds
  • LED reading accuracy: +/-1% for voltage and +/-2% for current
  • Environment: 0-40C, relative humidity < 80%
  • Warranty: 1 year

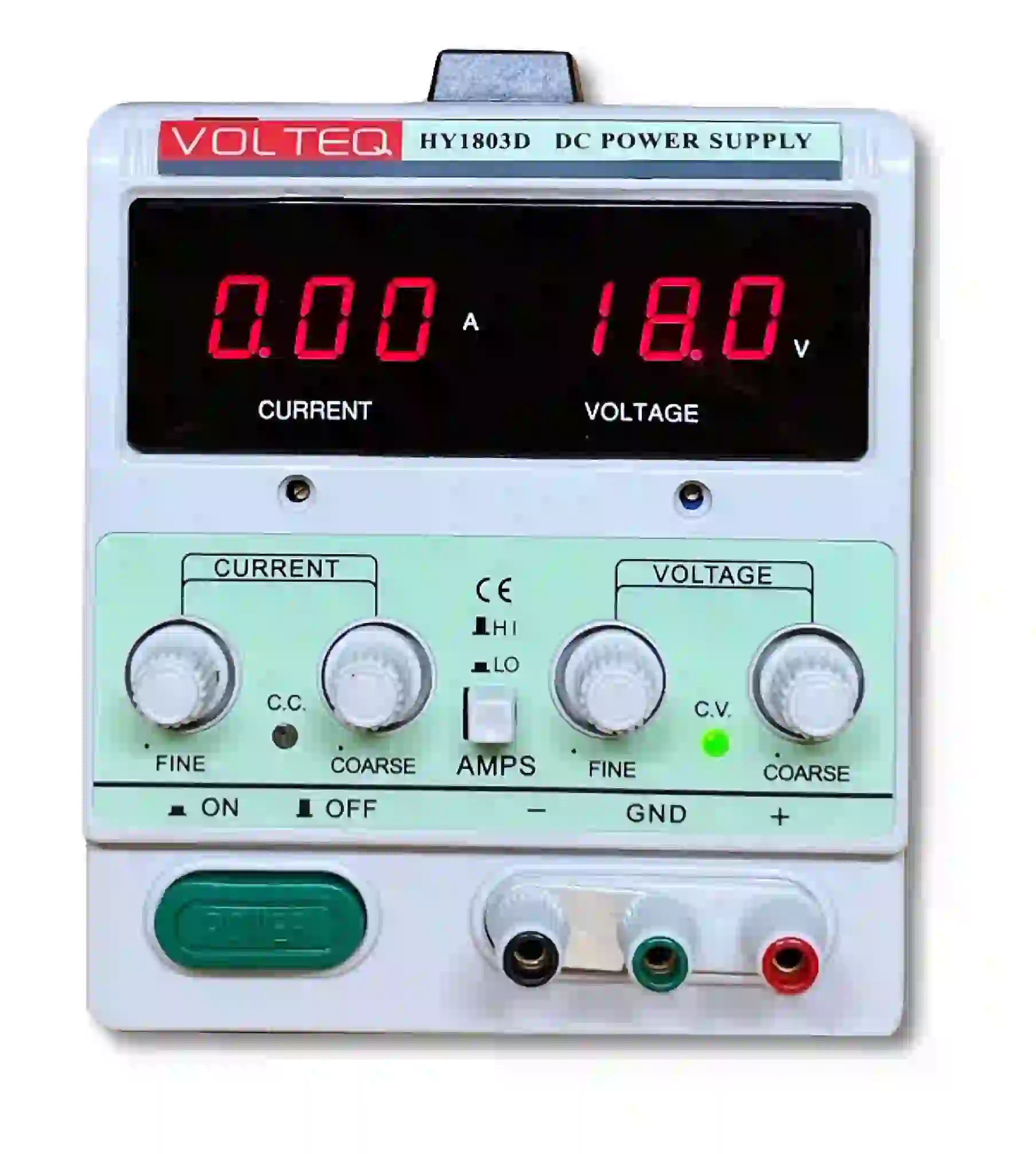

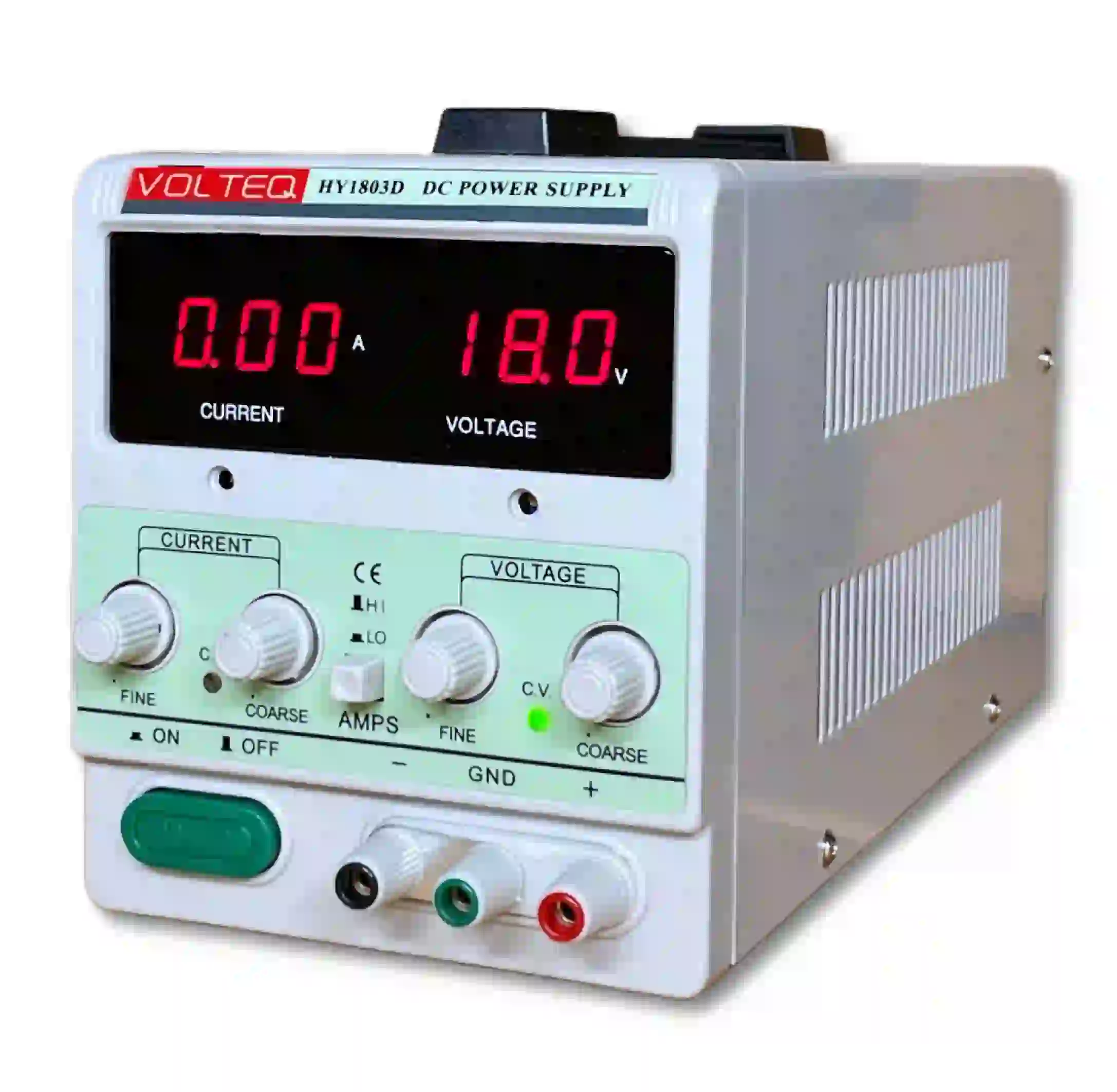

 Linear Power Supply HY1803D
 Linear Power Supply HY1803D
 Linear Power Supply HY1803D
 Linear Power Supply HY1803D
Product CodeHY1803D
ManufacturerVOLTEQ
Stock Level19
ConditionNew
Weight10.65lb
Width5″
Height6″
Depth10.62″
