Adjustable Output Power Supply | VOLTEQ HY5005D - 0-50V DC, 0-5A

Adjustable Output Power Supply | VOLTEQ HY5005D - 0-50V DC, 0-5A

Tap to enlarge

4.0 average, based on 1 reviews

$260.00$139.95

(Quantity discounts available)


Product Information
Specification
Quantity Discounts

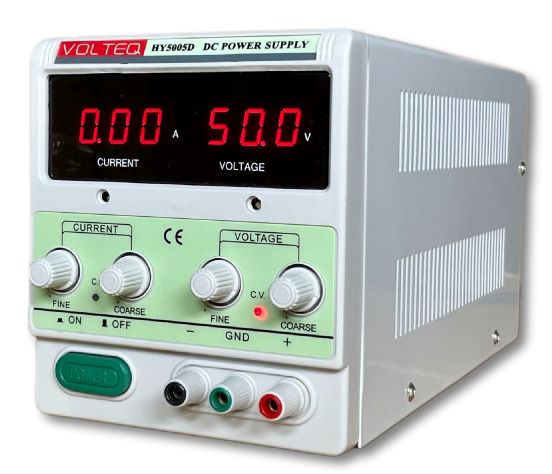

VOLTEQ HY5005D is a lab grade linear DC regulated power supply with up to 50V and up to 5A output. This highly stable, high quality linear DC power supply has an output continuously adjustable at 0-50V DC and 0-5A. The unit comes with 2 bright LED displays, providing accurate readout for the voltage and current values.

The modification includes adding over-voltage and reverse-voltage protection, removing the short circuit protection, so you can short the output to set the current limit; and a Hi/Lo button that allow you to cut the current in half when it's pushed.


Features & Specifications:


  • Adjustable outputs: 0-50V and 0-5A
  • Coarse and fine controls for both current and voltage outputs
  • Protection: over-voltage and reverse-voltage protection
  • Input voltage: 110V/60Hz and 220V/50Hz switchable
  • Line regulation: CV <= 0.01% + 3 mV, CC <= 0.2% + 3 mA
  • Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
  • Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
  • Recovery time: < 100 micro seconds
  • LED reading accuracy: +/-1% for voltage and +/-2% for current
  • Environment: 0-40C, relative humidity < 80%
  • Warranty: 1 year
Linear Power Supply HY5005D
Linear Power Supply HY5005D
Linear Power Supply HY5005D
Linear Power Supply HY5005D
Product CodeHY5005D
ManufacturerVOLTEQ
Stock Level7
ConditionNew
Weight17lb
Width10″
Height6.25″
Depth14.25″

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$139.95
1+$139.95

Customer Reviews

Average Rating: 4

Good power supply for anodizing small parts

12345
gets the job done, current is a bit low, good for small partsPaul B. (6 Apr 2022, 04:28)
