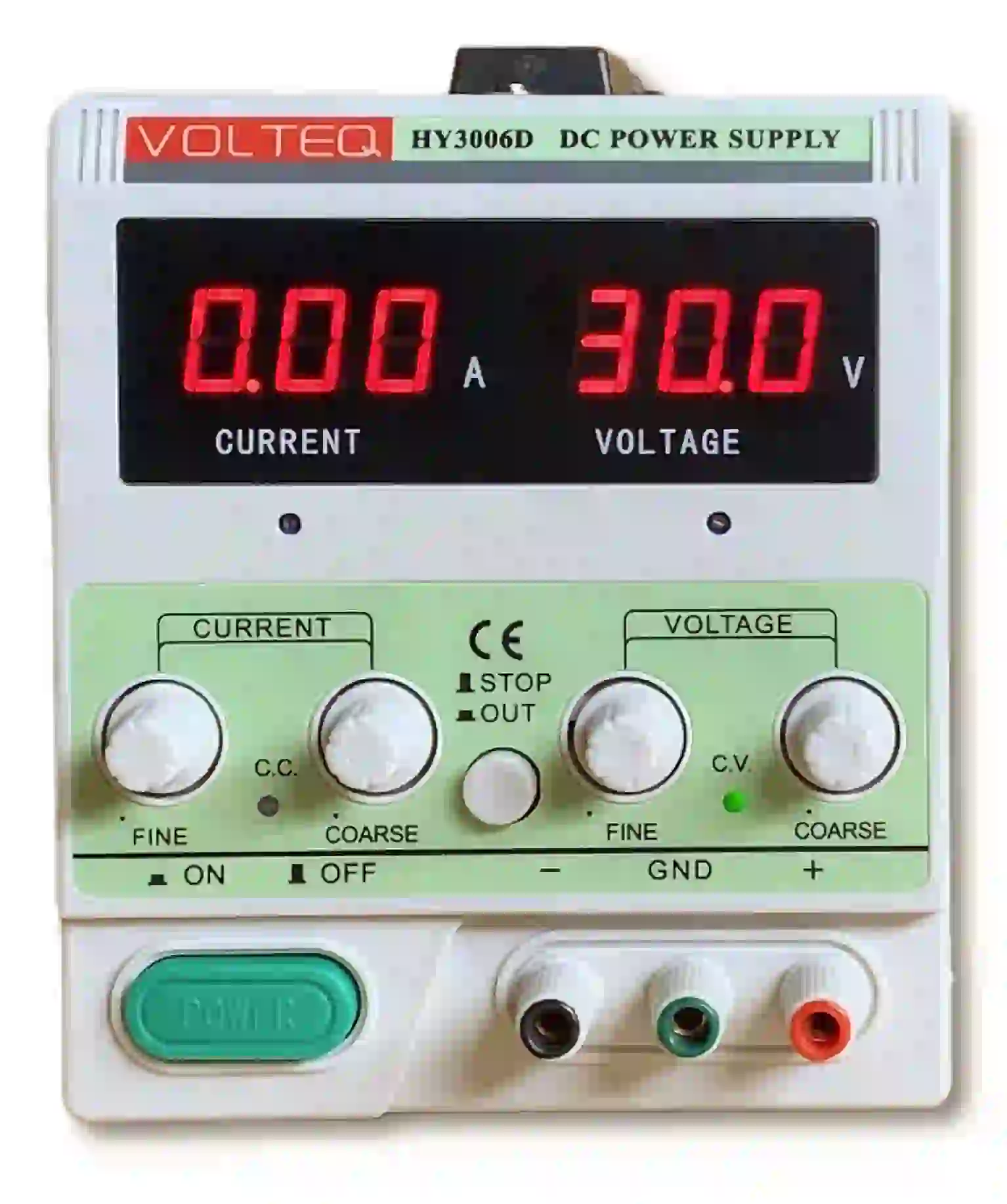

HY3006D 30V 6A Lab Grade Linear DC Regulated Power Supply

HY3006D 30V 6A Lab Grade Linear DC Regulated Power Supply

Tap to enlarge

12345

5.0 average, based on 3 reviews

$220.00$119.95


Product Information
Specification



VOLTEQ HY3006D is a lab grade linear DC regulated power supply, an improved version of the Mastech HY3006D we carry for years. This highly stable, high quality linear DC power supply has an output continuously adjustable at 0-30V DC and 0-6A. The unit comes with 2 bright LED displays, providing accurate readout for the voltage and current values.

The modification includes adding over-voltage and reverse-voltage protection, removing the short circuit protection, so you can short the output to set the current limit; and a Hi/Lo button that allow you to cut the current in half when it's pushed.



Features & Specifications:


  • Adjustable outputs: 0-30V and 0-6A
  • Coarse and fine controls for both current and voltage outputs
  • Protection: over-voltage and reverse-voltage protection
  • Input voltage: 110V/60Hz and 220V/50Hz switchable
  • Line regulation: CV <= 0.01% + 3 mV, CC <= 0.2% + 3 mA
  • Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
  • Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
  • Recovery time: < 100 micro seconds
  • LED reading accuracy: +/-1% for voltage and +/-2% for current
  • Environment: 0-40C, relative humidity < 80%
  • Warranty: 1 year
 Linear Power Supply HY3006D
 Linear Power Supply HY3006D
 Linear Power Supply HY3006D
 Linear Power Supply HY3006D
Product CodeHY3006D_new
ManufacturerVOLTEQ
Stock Level14
ConditionNew
Weight13lb
Width5″
Height6″
Depth10.62″

Customer Reviews

Average Rating: 5

Simple and effective

12345
Set up is simple. Readouts are clear and accurate. Overall, a great bench power source.Franke D (10 Nov 2022, 19:22)

Good product for benchwork

12345
This unit is perfect for bench testing lights prior to install. Gary S (9 Nov 2022, 19:06)

Great power supply for plating small parts

12345
Works as well as described. Fast shipping and well packed.Jennifer M. (22 Oct 2022, 02:16)
