Quakko 700 2-in-1 Hot Air Rework Station 9 Nozzles

$400.00 $238.00

(Bulk discounts available)

Stock Level: 19

Product Information

QUAKKO 700 is an improved Model of the original 8502 2-in-1 hot air soldering/rework station, a must-have for anyone that needs a workhorse for surface or hole mount components. With QUAKKO 700, you get a temperature controlled solder station and rework station in one compact and convenient setup. You also get a sharp-tip regular soldering iron for fine pitch chips, and 9 nozzles (instead of the 8 nozzles for the old 8502 model) for surface mount components (see pictures for more details). We also throw in the pickup tool for free! (See the second picture) We also carry extra nozzles, please email us for more information or check out other items for sale.

With the hot air output of this unit, you can perform surface mount rework in seconds, without damage to either components or PC boards. Just screw a nozzle onto the hot air tool, place the nozzle over the QFP, SOP, PLCC or SOJ to be desoldered, apply hot air to melt the solder without ever touching the component or PC board, and gently lift the component from the board using the included pick up wires. Soldering of the replacement SMD is just as easy. Other applications include thermal testing of electronic components, shrink-wrapping protective packaging, and welding thermoplastics. Station is made of metal and coated with a static-dissipative paint, so it's totally ESD-safe. This item includes 9 nozzles, additional nozzles are also available for purchase.

Features & Specifications:

Compact and versatile, with built in air pump, so there is no need for external compressed air source.

Separate control for temperature and air pressure for most demanding work

Hot air temperature: 100C to 420C

Iron temperature: 200C to 480C

Power consumption: 270W(Max)

Anti-static design

Power: 110 V AC/ 320W(Max)

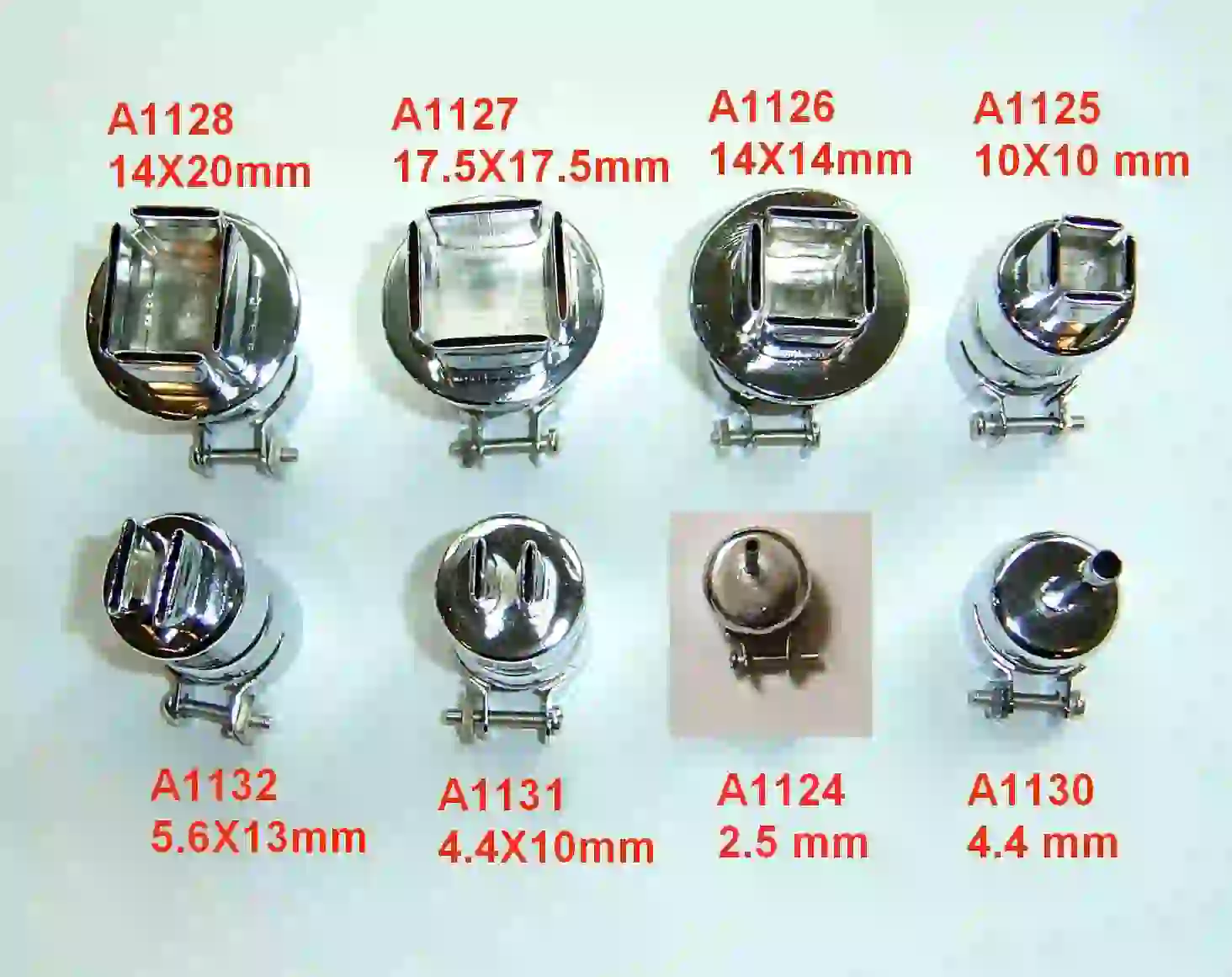

Nozzles included: A1124 (2.5 mm round), A1125(10x10mm QFP), A1126(14x14mm QFP), A1127(17.5x17.5mm QFP), A1129(28x28mm QFP), A1130(4.4mm round), A1131(4.4x10mm SOP), A1132(5.6x13mm SOP), and A1010 (10 mm square)

Warranty: 1 year parts and labor. Buyers only need to contact us for service need.

Quakko-reworkstation.jpg Quakko-reworkstation.jpg Quakko-reworkstation.jpg Quakko-reworkstation.jpg


Product Code: QK-700-9

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.

Quantity Price per unit
1+ $238.00

Customer Reviews

This product hasn't been reviewed yet. Write a review
